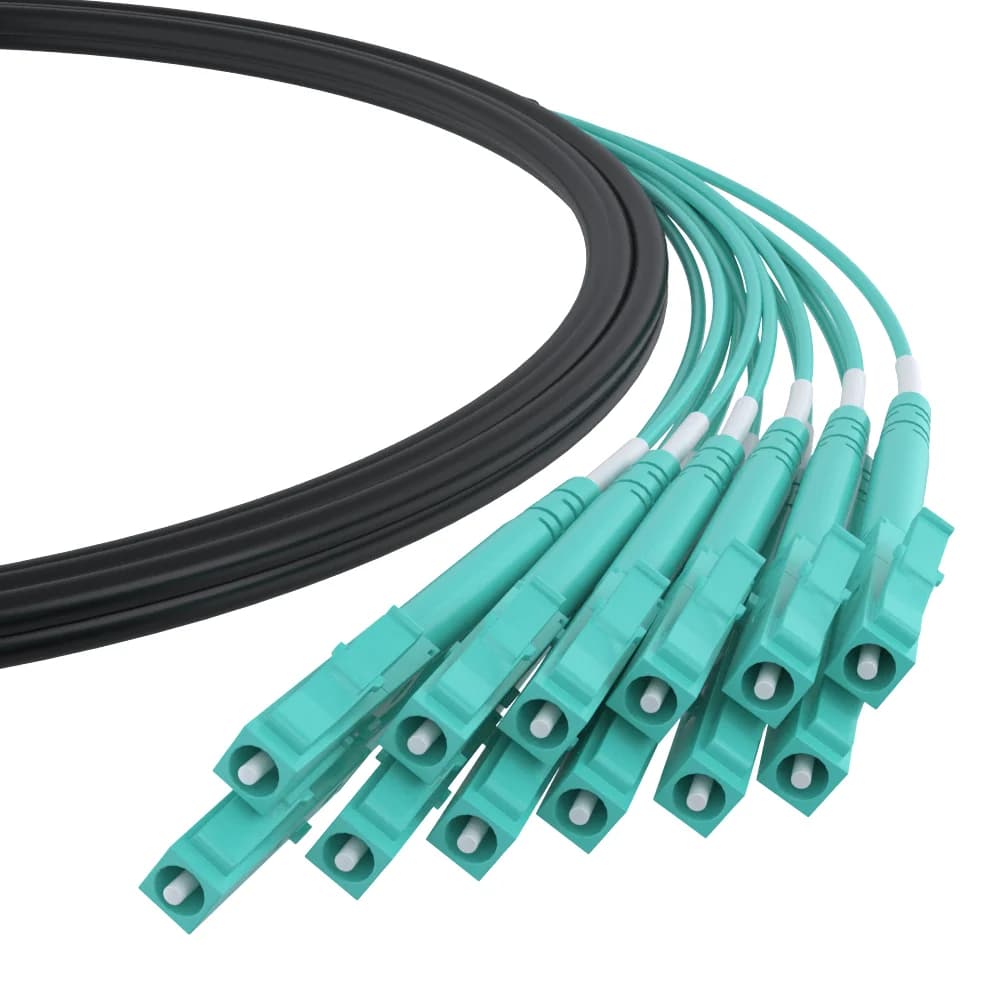

JBX67375 - primary

85m LC/LC 24-Strand OM3 Multimode 50/125 Indoor/Outdoor Plenum Rated Fiber Cable with 18" Furcated Legs

JBX67375

$1021.00
In Stock - Ships in 1 Days|0 Reviews|0 Questions
Free Shipping: Free Standard Shipping on Orders Over $99
Ships From: Danville, CA 94526, Fort Worth, TX 76028
Custom Avaliable: Available in Custom Lengths
TAA Compliant: Yes
Warranty: 90 Day Limited Warranty

Professional-grade 85m OM3 multimode fiber optic cable featuring LC/UPC connectors and 24 strands. Plenum-rated for indoor/outdoor installations with 18" furcated legs. US-manufactured, TAA compliant, and backed by a 90-day warranty.

Description

The JBX67375 85-meter OM3 LC/LC 24-strand multimode fiber optic cable represents the ideal solution for organizations requiring robust, high-speed network infrastructure. This professionally engineered cable combines superior performance specifications with practical installation features, making it suitable for a wide range of demanding applications. **Key Technical Features:** Built on OM3 50/125 multimode fiber core technology, this cable delivers exceptional bandwidth capabilities up to 10 Gbps. The dual LC/UPC connectors ensure precise optical coupling with minimal signal loss. The furcated leg design provides flexible routing options, while the 8mm outer diameter offers manageable installation without excessive bulk. With 24 individual strands, this cable maximizes network density and redundancy possibilities. **Environmental Ratings & Compliance:** The plenum-rated (OFNP) jacketing makes this cable the preferred choice for installations in return air spaces, elevator shafts, and other air-handling cavities where fire-rated materials are mandatory. Engineered for both indoor and outdoor deployment, it withstands temperature fluctuations and moisture exposure. Full RoHS and TAA compliance ensures the product meets stringent environmental and procurement regulations required by government and enterprise customers. **Performance Specifications:** Attenuation testing confirms exceptional signal clarity: 3.5 dB/km at 850nm and 1.0 dB/km at 1300nm wavelengths. These industry-leading specifications guarantee clear signal transmission over extended distances, reducing the need for signal regeneration equipment and lowering total cost of ownership. **Applications & Use Cases:** Ideal for data center interconnects, telecommunications networks, campus backbone installations, and broadcast facilities. The 85-meter length accommodates most floor-to-floor and building-to-building connections. The 24-strand configuration provides exceptional capacity for high-density networking environments. **Sourcing & Support:** Manufactured in the United States, this cable undergoes rigorous quality testing to ANSI/TIA/EIA-455-171-A-2001 standards. Ships rapidly from strategically located fulfillment centers with free standard shipping on qualifying orders. Backed by a 90-day limited warranty and available in custom lengths for specialized requirements. Harmonization code 8544.70.0000.

Technical Specifications

ColorBlack
Fiber Strands24 Strands
ComplianceRoHS / ELV
Country of ManufactureUS
Fiber ConnectorsLC/UPC to LC/UPC
DirectiveEU directive 2002/95/EC (RoHS)
TAA CompliantYes
Quick Descriptiom85m OM3 LC/LC Indoor Outdoor
Hamonization Code8544.70.0000
Fiber CoreOM3 50/125 Multimode
Length Meters85m
PolarityStraight Through
Glass FiberBend Insensitive Fiber
Outside Diameter8.0mm
StandardsAttenuation tested in accordance with ANSI/TIA/EIA-455-171-A- 2001
Insertion Loss≤0.35dB (0.15dB Typ.)
Return Loss≥20dB
Attenuation850 nm: 3.5 dB/km or at 1300 nm: 1.0 dB/km
JacketingPlenum Rated (OFNP)
