JBX66285 - primary

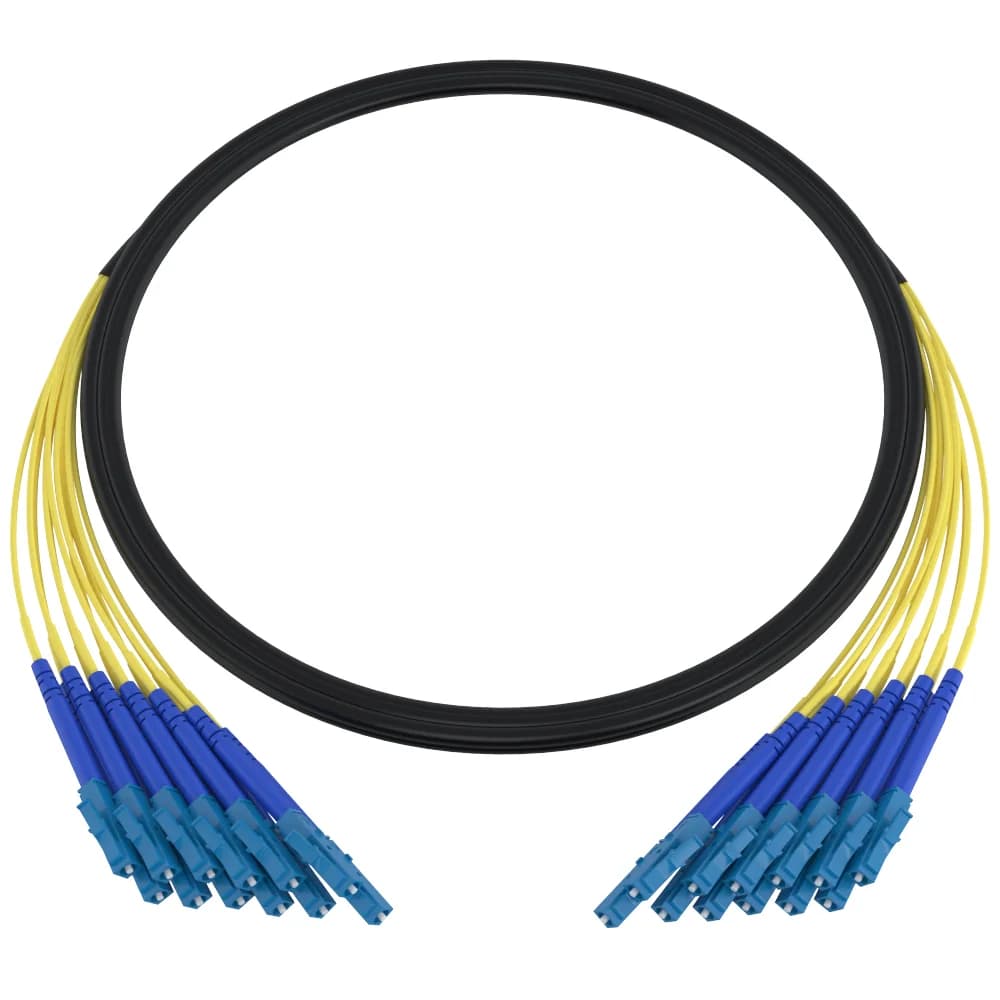

85m LC/LC 12-Strand Singlemode 9/125 Indoor/Outdoor Fiber Cable with 18-36" Staggered Furcated Legs and Mesh Pull Sock

JBX66285

$644.00
Out of Stock|0 Reviews|0 Questions|
New
Free Shipping: Free Standard Shipping on Orders Over $99
Ships From: Danville, CA 94526, Fort Worth, TX 76028
Custom Avaliable: Available in Custom Lengths
TAA Compliant: Yes
Warranty: 90 Day Limited Warranty

Professional-grade 85-meter LC/LC 12-strand singlemode fiber optic cable engineered for demanding indoor/outdoor applications. Features plenum-rated OFNP jacketing, staggered furcated legs, mesh pull sock, and low attenuation specifications. TAA compliant with 90-day warranty.

Description

The JBX66285 85-meter LC/LC 12-strand singlemode fiber optic cable represents a premium solution for professional network infrastructure applications. This robust cable assembly combines advanced fiber technology with practical installation features designed for both indoor and outdoor deployment. Technical Excellence: Built with 9/125 singlemode fiber cores, this cable provides industry-leading performance for long-distance, high-bandwidth applications. The dual-wavelength attenuation specifications (0.25 dB/km @ 1310nm and 0.35 dB/km @ 1550nm) ensure optimal signal integrity across standard telecommunications bands. All strands undergo rigorous attenuation testing in compliance with ANSI/TIA/EIA-455-171-A-2001 standards. Installation & Safety Features: The cable incorporates 18-36 inch staggered furcated legs that facilitate organized termination and reduce strain on connector assemblies. The included mesh pull sock protects fiber strands during installation while providing controlled cable management. The plenum-rated OFNP jacketing (UL-910) allows safe deployment in air-return spaces and building pathways, meeting critical fire safety codes. Compliance & Certification: Manufactured in the USA, this cable meets TAA requirements for government procurement and carries RoHS/ELV certification for environmental compliance. The 8mm diameter jacket provides durability while maintaining flexibility for routing through conduits and tight spaces. Applications: Ideal for data center interconnects, telecommunications networks, enterprise campus backbones, and high-speed research networks. The 12-strand configuration supports multi-fiber trunk routes and redundant network paths. Warranty & Support: Backed by a 90-day limited warranty. Custom lengths available for specialized applications. Free standard shipping on orders exceeding $99.

Technical Specifications

ColorBlack
Fiber Strands12 Strands
ComplianceRoHS / ELV
Country of ManufactureUS
Fiber ConnectorsLC/UPC to LC/UPC
DirectiveEU directive 2002/95/EC (RoHS)
TAA CompliantYes
Quick Descriptiom85m Singlemode LC/LC Indoor Outdoor
Hamonization Code8544.70.0000
Fiber Core9/125 Singlemode
Length Meters85m
PolarityStraight Through
Outside Diameter8.0mm
StandardsAttenuation tested in accordance with ANSI/TIA/EIA-455-171-A- 2001
Attenuation1310 nm: 0.25 dB/km or at 1550 nm: 0.35 dB/km
JacketingPlenum Rated (OFNP)
