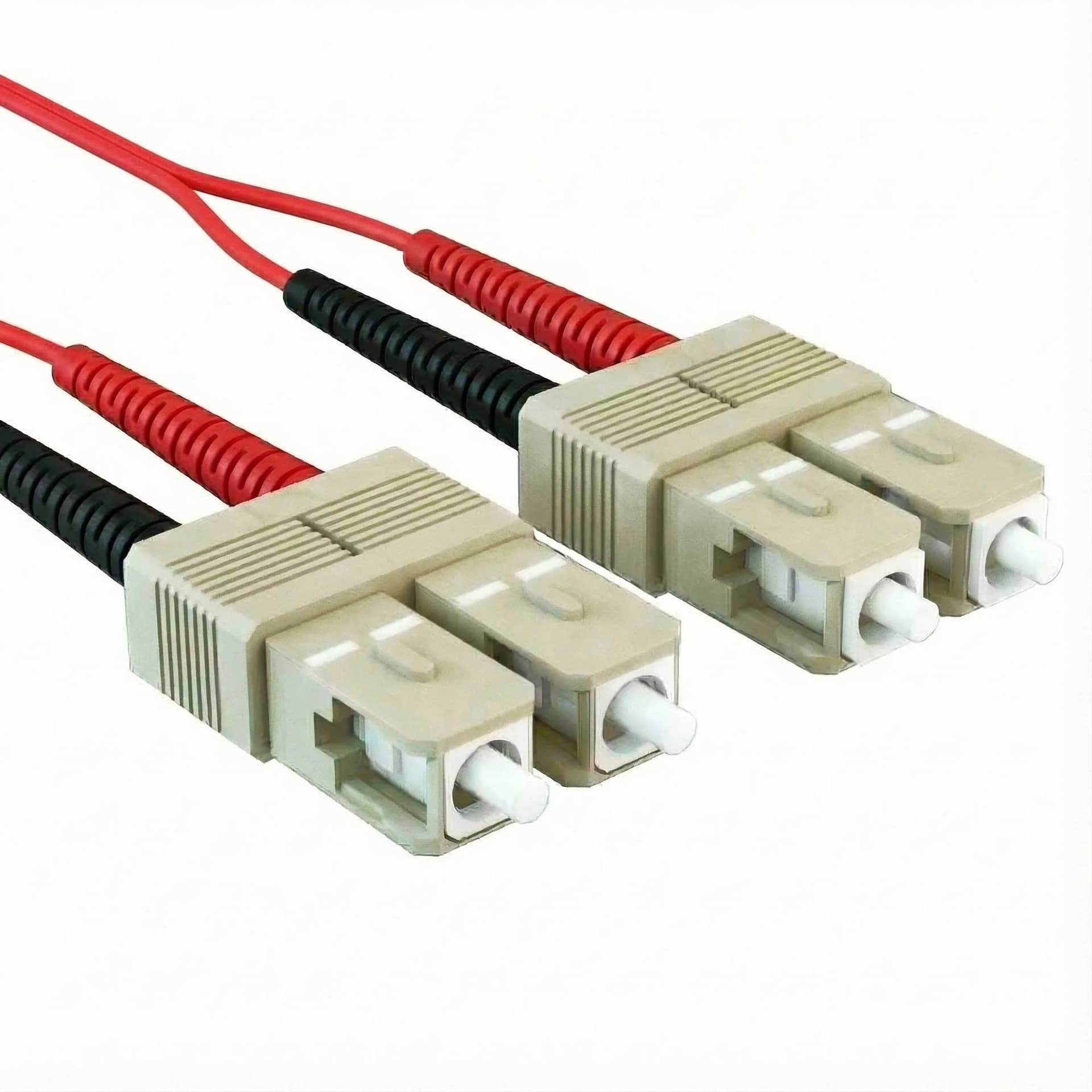

2m SC/SC OM3 50/125 Multimode Fiber Patch Cable TAA Red
JBX45103
Professional 2m OM3 50/125 multimode fiber patch cable with SC/UPC connectors. Features bend-insensitive jacketing, TAA compliance, and low insertion loss (0.35dB max). Ideal for high-speed data centers and network installations. Includes 90-day warranty.
Description
The JBX45103 represents a professional-grade solution for fiber optic networking infrastructure. This 2-meter SC/SC OM3 50/125 multimode fiber patch cable combines cutting-edge fiber technology with industry-leading performance specifications. **Technical Excellence:** Built with bend-insensitive OM3 multimode fiber, this cable accommodates tight installation spaces without compromising signal integrity. The 50/125 micrometer core and cladding dimensions provide optimal balance between bandwidth capacity and connector compatibility. With insertion loss of just 0.15dB typical and return loss exceeding 60dB, this cable ensures clean, uninterrupted signal transmission critical for high-speed data applications. **Superior Construction:** The OFNP-rated bend-insensitive jacketing provides mechanical protection while reducing installation stress. The 1.8mm outside diameter allows seamless integration into dense cable management systems. Dual SC/UPC connectors with Type A-to-B crossover configuration follow industry standards, ensuring immediate compatibility with existing infrastructure. **Compliance & Reliability:** TAA compliance certification makes this cable ideal for government contracts, enterprise deployments, and secure facility installations. RoHS/ELV directive adherence demonstrates environmental responsibility. Manufacturing in Taiwan, US, and China ensures consistent quality and availability. The 90-day limited warranty provides peace of mind. **Performance Specifications:** - Attenuation: 3.5 dB/km @ 850nm; 1.0 dB/km @ 1300nm - Tested per ANSI/TIA/EIA-455-171-A standards - Supports multimode transmission distances up to 2km **Applications:** Ideal for data centers, campus backbone networks, telecommunications facilities, and network upgrades. Perfect for organizations requiring TAA-compliant infrastructure. **Shipping & Availability:** Enjoy free standard shipping on orders exceeding $99. Ships from multiple US distribution centers for rapid delivery. Custom lengths available for unique installation requirements.
Technical Specifications
| Color | Red |
| Fiber Strands | Two (Duplex) |
| Compliance | RoHS / ELV |
| Country of Manufacture | TW, US, CN |
| Fiber Connectors | SC/UPC to SC/UPC |
| Directive | EU directive 2002/95/EC (RoHS) |
| TAA Compliant | Yes |
| Quick Descriptiom | 2m SC/SC OM3 50/125 Red |
| Hamonization Code | 8544.70.0000 |
| Fiber Core | OM3 50/125 Multimode |
| Length Meters | 2m |
| Polarity | Type A to B Crossover (Most Common for Duplex Patch Cords) |
| Glass Fiber | Bend Insensitive Fiber |
| Outside Diameter | 1.8mm |
| Standards | Attenuation tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 |
| Insertion Loss | ≤0.35dB (0.15dB Typ.) |
| Return Loss | ≥60dB |
| Attenuation | 850 nm: 3.5 dB/km or at 1300 nm: 1.0 dB/km |
| Jacketing | Bend Insensitive (OFNP) |
