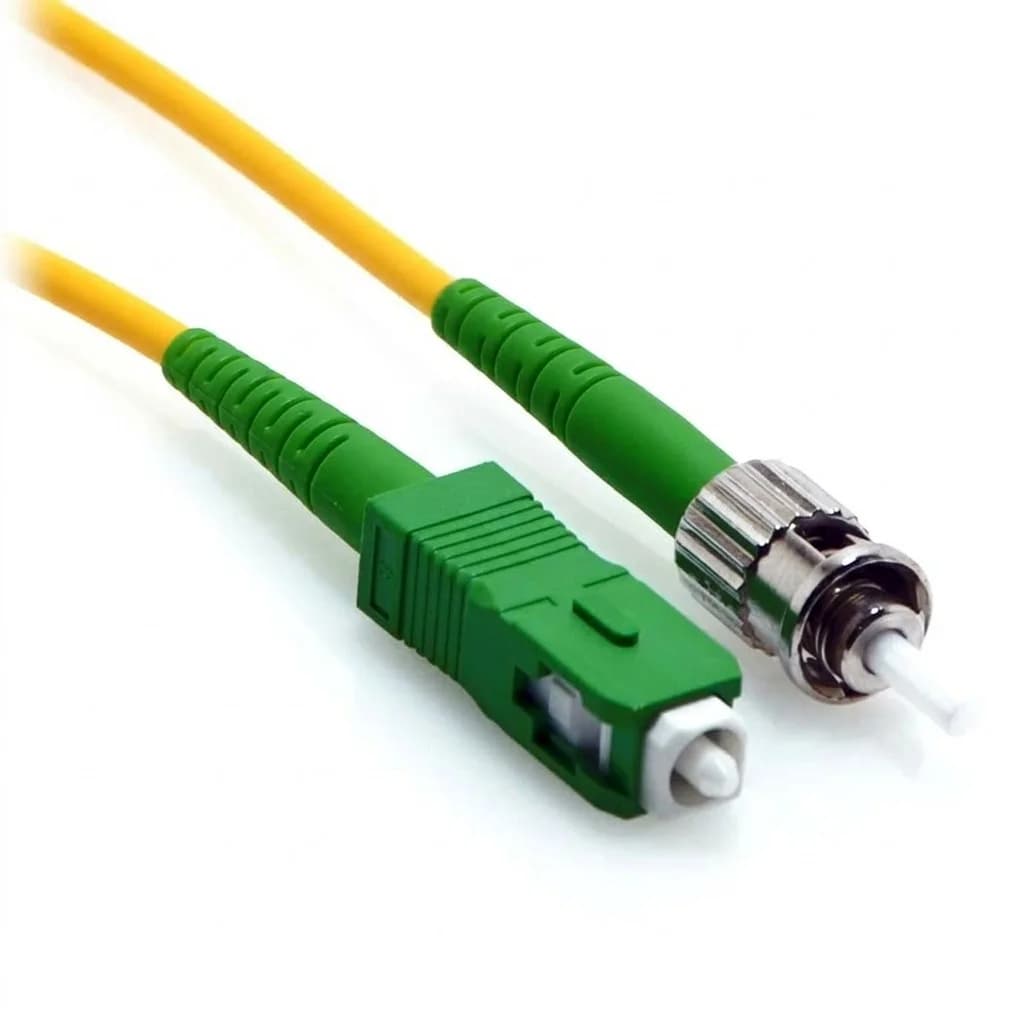

1.5m SC/APC to ST/APC Simplex 9/125 Singlemode Fiber Patch Cable Yellow TAA
JBX43392
Professional-grade 1.5m SC/APC to ST/APC simplex fiber patch cable with singlemode 9/125 core. TAA compliant, riser-rated jacket, and tested to ANSI/TIA standards. Perfect for datacenter and telecommunications applications requiring reliable signal transmission.
Description
The 1.5m SC/APC to ST/APC simplex fiber patch cable represents a professional-grade solution for optical network connectivity. This cable is engineered to meet the stringent requirements of modern telecommunications and datacenter infrastructure. **Technical Specifications:** This singlemode fiber cable features a 9/125 micron core with G.657.A1 glass fiber composition, delivering superior performance characteristics. The insertion loss specification of ≤0.35dB (typical 0.15dB) and return loss of ≥20dB ensures minimal signal degradation over the 1.5-meter span. Tested in accordance with ANSI/TIA/EIA-455-171-A-2001 standards, the cable maintains attenuation rates of 0.25 dB/km at 1310nm and 0.35 dB/km at 1550nm—ideal for both short-wavelength and long-wavelength transmission applications. **Construction & Durability:** The 1.8mm outside diameter yellow jacket is riser-rated (OFNR), meeting building code requirements for indoor installations while providing excellent mechanical protection. The straight-through polarity configuration ensures seamless signal transmission between SC/APC and ST/APC connectors. **Compliance & Standards:** TAA compliant and RoHS/ELV directive adherent, this cable meets government procurement standards and environmental regulations. Available in multiple manufacture locations (Taiwan, US, China) ensuring consistent quality and availability. **Applications:** Ideal for fiber optic network backbone connections, equipment interconnects, telecommunications installations, and datacenter deployments requiring reliable singlemode connectivity. The simplex design suits point-to-point communications where unidirectional signal transmission is required. **Custom Options:** Available in custom lengths to accommodate specific installation requirements. Ships from multiple US locations (Danville CA, Fort Worth TX, Beaufort SC) with free standard shipping on orders over $99. Backed by a comprehensive 90-day limited warranty.
Technical Specifications
| Color | Yellow |
| Fiber Strands | One (Simplex) |
| Compliance | RoHS / ELV |
| Country of Manufacture | TW, US, CN |
| Fiber Connectors | SC/APC to ST/APC |
| Directive | EU directive 2002/95/EC (RoHS) |
| TAA Compliant | Yes |
| Quick Descriptiom | 1.5m SC/APC to ST/APC SMS Yellow TAA |
| Hamonization Code | 8544.70.0000 |
| Fiber Core | 9/125 Singlemode |
| Length Meters | 1.5m |
| Polarity | Straight Through |
| Glass Fiber | G.657.A1 |
| Outside Diameter | 1.8mm |
| Standards | Attenuation tested in accordance with ANSI/TIA/EIA-455-171-A- 2001 |
| Insertion Loss | ≤0.35dB (0.15dB Typ.) |
| Return Loss | ≥20dB |
| Attenuation | 1310 nm: 0.25 dB/km or at 1550 nm: 0.35 dB/km |
| Jacketing | Riser Rated (OFNR) |
Reviews
No reviews yet
Be the first to review this product and help other customers make informed decisions.
$21.75
In Stock
