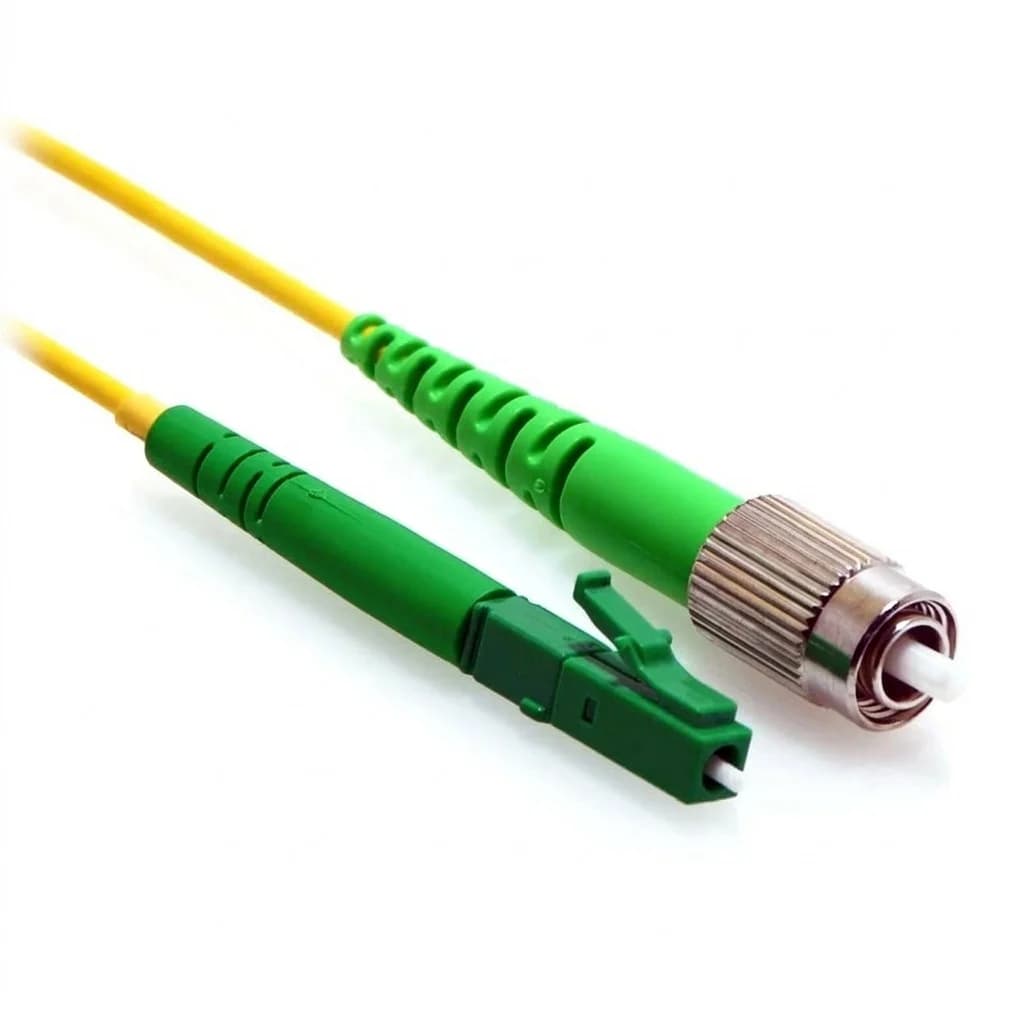

LC/APC to FC/APC Simplex 9/125 Singlemode Fiber Patch Cable Yellow TAA

60m LC/APC to FC/APC Simplex 9/125 Singlemode Fiber Patch Cable Yellow TAA

JBX43233

$57.69
In Stock|0 Reviews|0 Questions
Free Shipping: Free Standard Shipping on Orders Over $99
Ships From: Danville, CA 94526, Fort Worth, TX 76028, Beaufort, SC 29902
Custom Avaliable: Available in Custom Lengths
TAA Compliant: Yes
Warranty: 90 Day Limited Warranty

Professional-grade 60m LC/APC to FC/APC simplex fiber patch cable featuring 9/125 singlemode construction, TAA compliance, and superior signal integrity. Ideal for telecommunications and data center applications requiring reliable fiber connectivity with minimal insertion loss.

Description

The JBX43233 60-meter LC/APC to FC/APC Simplex Singlemode Fiber Patch Cable represents premium connectivity for professional networking infrastructure. Built to exacting standards, this fiber optic cable delivers reliable, high-speed data transmission across extended distances. **Key Technical Features:** This cable utilizes 9/125 singlemode fiber construction with G.657.A1 specification, optimized for both 1310nm and 1550nm wavelengths. The LC/APC and FC/APC connectors feature angled polish geometry that minimizes back reflection, achieving return loss of ≥20dB. With typical insertion loss of just 0.15dB and maximum 0.35dB, this cable ensures minimal signal degradation across the 60-meter span. **Construction & Durability:** The 1.8mm outside diameter provides durability while maintaining flexibility for installation in tight spaces. The OFNR riser-rated jacket meets fire safety requirements for vertical building runs. Manufactured with precision in Taiwan, the United States, or China, each cable undergoes rigorous attenuation testing per ANSI/TIA/EIA standards. **Compliance & Standards:** Fully TAA compliant for government procurement, RoHS/ELV certified for environmental compliance. The cable meets EU Directive 2002/95/EC requirements. **Applications:** Ideal for telecommunications networks, data centers, campus networks, CATV installations, and any application requiring reliable singlemode fiber connectivity. The straight-through polarity configuration ensures straightforward installation. **Shipping & Support:** Enjoy free standard shipping on orders exceeding $99. Ships from multiple U.S. locations (Danville CA, Fort Worth TX, Beaufort SC) for fast delivery. Custom lengths available for specialized requirements. Backed by a 90-day limited warranty. **Value Proposition:** This premium fiber patch cable combines professional-grade performance with cost-effective pricing, making it the intelligent choice for network upgrades, expansions, and maintenance.

Technical Specifications

ColorYellow
Fiber StrandsOne (Simplex)
ComplianceRoHS / ELV
Country of ManufactureTW, US, CN
Fiber ConnectorsLC/APC to FC/APC
DirectiveEU directive 2002/95/EC (RoHS)
TAA CompliantYes
Quick Descriptiom60m LC/APC to FC/APC SMS Yellow TAA
Hamonization Code8544.70.0000
Fiber Core9/125 Singlemode
Length Meters0.5m
PolarityStraight Through
Glass FiberG.657.A1
Outside Diameter1.8mm
StandardsAttenuation tested in accordance with ANSI/TIA/EIA-455-171-A- 2001
Insertion Loss≤0.35dB (0.15dB Typ.)
Return Loss≥20dB
Attenuation1310 nm: 0.25 dB/km or at 1550 nm: 0.35 dB/km
JacketingRiser Rated (OFNR)
