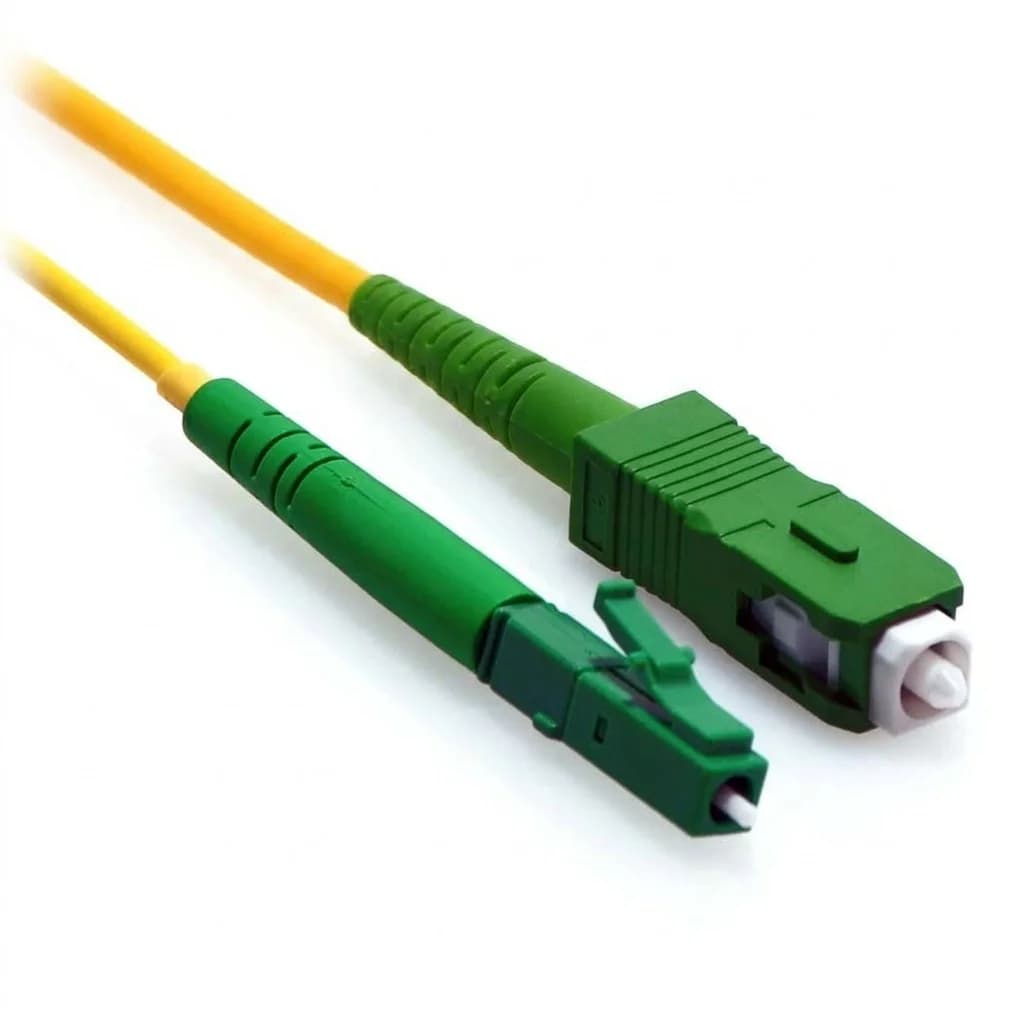

LC/APC to SC/APC Simplex 9/125 Singlemode Fiber Patch Cable Yellow

60m LC/APC to SC/APC Simplex 9/125 Singlemode Fiber Patch Cable Yellow TAA

JBX43113

$57.69
In Stock|0 Reviews|0 Questions
Free Shipping: Free Standard Shipping on Orders Over $99
Ships From: Danville, CA 94526, Fort Worth, TX 76028, Beaufort, SC 29902
Custom Avaliable: Available in Custom Lengths
TAA Compliant: Yes
Warranty: 90 Day Limited Warranty

Professional-grade 60m LC/APC to SC/APC simplex singlemode fiber patch cable featuring 9/125 core with low insertion loss (≤0.35dB). TAA compliant, yellow riser-rated jacketing. Ideal for telecom and data center applications. Custom lengths available.

Description

The JBX43113 LC/APC to SC/APC 60-meter singlemode fiber patch cable represents premium-quality networking infrastructure designed for mission-critical telecommunications environments. This simplex configuration features a single 9/125 singlemode fiber core optimized for long-distance, low-loss signal transmission across industry-standard wavelengths of 1310nm and 1550nm. **Technical Excellence**: The cable achieves exceptional performance metrics including insertion loss of ≤0.35dB (0.15dB typical) and return loss ≥20dB, meeting rigorous ANSI/TIA/EIA-455-171-A-2001 standards. The G.657.A1 glass fiber formulation ensures compatibility with modern bent-radius cable routing while maintaining signal quality. With attenuation specs of 0.25 dB/km at 1310nm or 0.35 dB/km at 1550nm, this cable minimizes signal degradation over longer distances. **Superior Design**: The bright yellow riser-rated (OFNR) jacketing provides 1.8mm outer diameter flexibility for tight installations while offering fire-safe performance in commercial buildings. LC/APC and SC/APC connectors feature angled physical contact polishing, reducing back reflection and improving signal integrity compared to standard APC connections. **Compliance & Availability**: TAA compliant with RoHS/ELV certification, this cable meets government procurement requirements. Available in custom lengths beyond the standard 60m offering, with rapid fulfillment from multiple US distribution centers (Danville CA, Fort Worth TX, Beaufort SC). Free standard shipping on orders exceeding $99 makes it economical for bulk deployments. **Ideal Applications**: Perfect for fiber-to-the-premises (FTTP) installations, data center backbone connections, telecom infrastructure upgrades, and high-speed network expansions requiring single-direction transmission. The 90-day limited warranty provides confidence in long-term performance.

Technical Specifications

ColorYellow
Fiber StrandsOne (Simplex)
ComplianceRoHS / ELV
Country of ManufactureTW, US, CN
Fiber ConnectorsLC/APC to SC/APC
DirectiveEU directive 2002/95/EC (RoHS)
TAA CompliantYes
Quick Descriptiom60m LC/APC to SC/APC SMS Yellow TAA
Hamonization Code8544.70.0000
Fiber Core9/125 Singlemode
Length Meters60m
PolarityStraight Through
Glass FiberG.657.A1
Outside Diameter1.8mm
StandardsAttenuation tested in accordance with ANSI/TIA/EIA-455-171-A- 2001
Insertion Loss≤0.35dB (0.15dB Typ.)
Return Loss≥20dB
Attenuation1310 nm: 0.25 dB/km or at 1550 nm: 0.35 dB/km
JacketingRiser Rated (OFNR)
