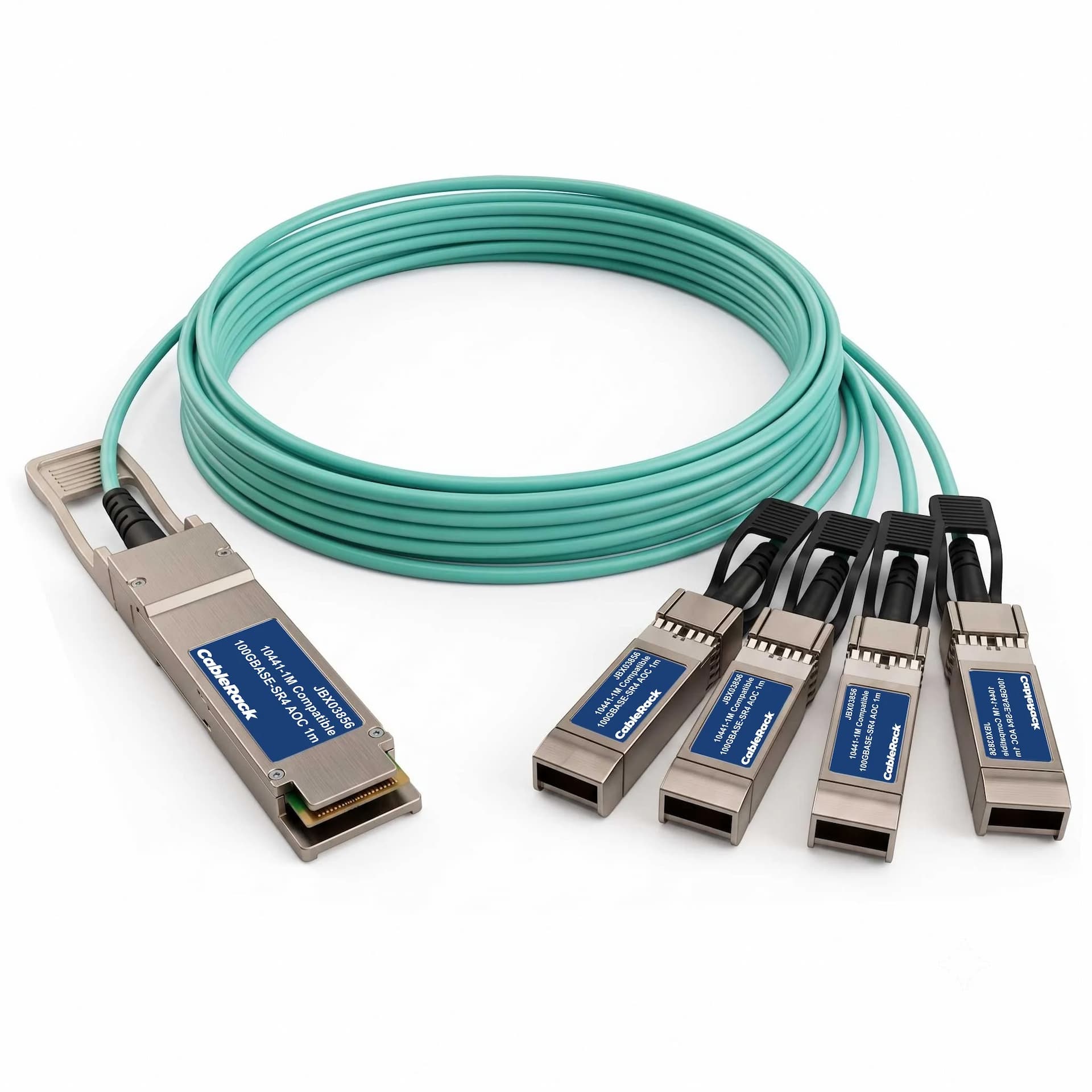

1m Extreme Networks 10441-1M Compatible 100GBASE-SR4 QSFP28 to 4x SFP28 Active Optical Cable OM3 LSZH (OFNR) Fiber
JBX03856
1m 100GBASE-SR4 QSFP28 to 4x SFP28 active optical breakout cable. Extreme Networks 10441-1M compatible. OM3 LSZH fiber, Class 1 laser certified. Supports 100GB data rates with IEEE 802.3bm compliance. RoHS certified with 90-day warranty.
Description
The JBX03856 1-meter 100GBASE-SR4 QSFP28 to 4x SFP28 Active Optical Cable represents a cutting-edge solution for modern data center infrastructure requiring high-density, high-speed connectivity. As a direct Extreme Networks 10441-1M compatible replacement, this AOC seamlessly integrates into existing network environments without compatibility concerns. Technical Excellence: This active optical breakout cable leverages OM3 50/125 multimode fiber technology, delivering exceptional performance for 100GB QSFP28 applications. The 8-strand fiber configuration supports simultaneous transmission across four SFP28 channels, each rated for 25GB capacity. Built to IEEE 802.3bm and QSFP28 MSA specifications, the cable ensures industry-standard performance and interoperability with enterprise-grade networking equipment. Safety & Compliance: The LSZH (Low Smoke Zero Halogen) riser-rated jacketing prevents hazardous smoke emission during fire incidents, making it suitable for commercial and industrial environments. Multiple safety certifications—including Class 1 Laser, UL/FDA 21CFR 1040.10, TUV, and RoHS/ELV compliance—demonstrate adherence to rigorous international safety and environmental standards. Practical Applications: Ideal for data centers, cloud infrastructure, high-performance computing clusters, and enterprise networks requiring modular 100G to 25G breakout connectivity. Perfect for network architects implementing flexible, scalable solutions that adapt to evolving bandwidth requirements. Operational Advantages: Compact 1-meter length suits short-reach intra-rack connectivity with minimal signal degradation. Temperature-rated operation (0-70°C) supports diverse deployment scenarios. Custom brand programming available for OEM and enterprise customers. Reliability & Support: 90-day limited warranty provides peace of mind. Ships from strategically located US warehouses (Danville, CA and Beaufort, SC) with free standard shipping on orders exceeding $99, ensuring rapid deployment and cost-effective procurement.
Technical Specifications
| Cable Type | Breakout AOC |
| Fiber Strands | 8 Strands |
| Compliance | RoHS / ELV |
| Country of Manufacture | CN, VN |
| Safety Certifications | Class 1 Laser, LN #50 7/2001, TUV, UL / FDA, 21CFR 1040.10 |
| Directive | EU directive 2002/95/EC (RoHS) |
| Quick Descriptiom | 1m 100GBASE-SR4 Extreme Networks Compatible |
| Hamonization Code | 8544.70.0000 |
| IEEE | IEEE 802.3bm, QSFP28 MSA, SFF-8665 |
| Fiber Core | OM3 50/125 Multimode |
| Replaces OEM P/N | 10441-1M |
| Dimensions | 12x12x2 |
| Length Meters | 1m |
| Gauge | |
| Data Rate | 100GB |
| Type | Multimode |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Standards | Qualified to IEEE 802.3bm specifications |
| Form Factor | QSFP28 |
| Compatible Part | Extreme Networks |
| Jacketing | Riser Rated (OFNR) |
