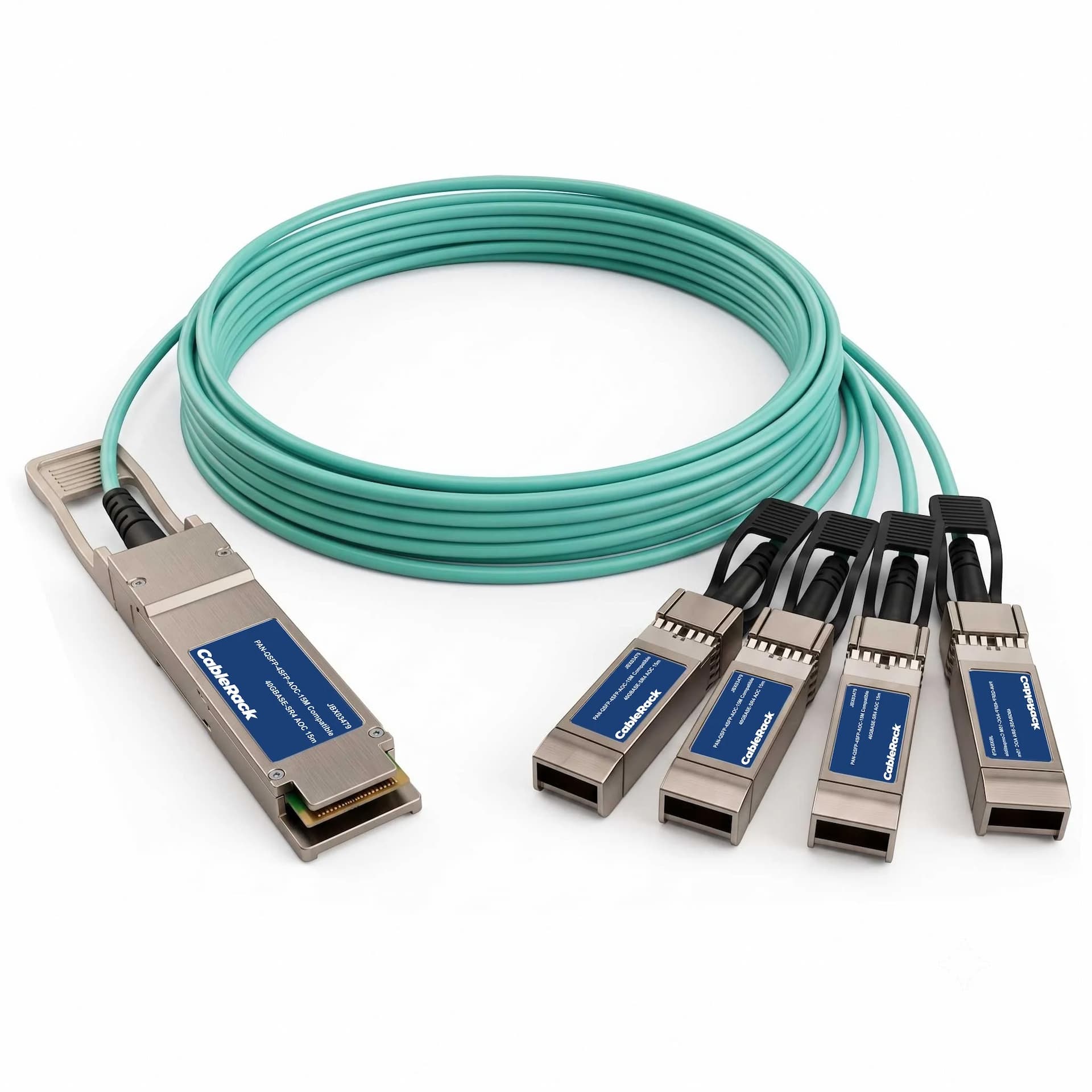

15m Palo Alto Networks PAN-QSFP-4SFP-AOC-15M Compatible 40GBASE-SR4 QSFP+ to 4x SFP+ Active Optical Cable OM3 LSZH (OFNR) Fiber
JBX03479
High-performance 15m Palo Alto Networks PAN-QSFP-4SFP-AOC-15M compatible active optical breakout cable. 40GBASE-SR4 QSFP+ to 4x SFP+ configuration with OM3 multimode fiber, LSZH jacketing, and full compliance certifications. Ideal for data center and enterprise networking.
Description
The JBX03479 represents a sophisticated solution for organizations requiring high-bandwidth interconnectivity in data center and enterprise environments. This 15-meter active optical cable (AOC) breakout configuration transforms a single 40GBASE-SR4 QSFP+ connection into four independent 10GBASE-SR SFP+ connections, maximizing port utilization and network flexibility. Key Technical Features: This breakout AOC utilizes OM3 50/125 multimode fiber technology, which provides superior performance over longer distances compared to standard multimode alternatives. The 8-strand fiber composition ensures signal integrity and eliminates crosstalk interference. The cable's LSZH jacketing is crucial for installations within commercial buildings, meeting fire code requirements while producing minimal smoke and toxic gases if combustion occurs. Compliance and Certification: Fully qualified to IEEE 802.3ba specifications, this cable meets stringent industry standards for high-speed optical communication. Comprehensive certifications include Class 1 Laser, TUV approval, and UL/FDA compliance (21CFR 1040.10), ensuring safe operation in professional environments. RoHS and ELV directive compliance guarantees environmental responsibility. Perfect Applications: Ideal for data centers upgrading connectivity infrastructure, network service providers expanding capacity, and enterprises implementing high-performance storage area networks (SANs). The breakout configuration is particularly valuable when equipment requires multiple SFP+ connections but only provides QSFP+ ports. Reliability and Support: Backed by a 90-day limited warranty and shipped from convenient US locations (Danville, CA or Beaufort, SC). Custom brand programming is available for organizational requirements. The cable operates reliably across 0-70°C temperature ranges, maintaining performance stability in varied environments. Free standard shipping applies to orders exceeding $99.
Technical Specifications
| Cable Type | Breakout AOC |
| Fiber Strands | 8 Strands |
| Compliance | RoHS / ELV |
| Country of Manufacture | CN, VN |
| Safety Certifications | Class 1 Laser, LN #50 7/2001, TUV, UL / FDA, 21CFR 1040.10 |
| Directive | EU directive 2002/95/EC (RoHS) |
| Quick Descriptiom | 15m 40GBASE-SR4 Palo Alto Networks Compatible |
| Hamonization Code | 8544.70.0000 |
| IEEE | IEEE 802.3ba, SFF-8436 |
| Fiber Core | OM3 50/125 Multimode |
| Replaces OEM P/N | PAN-QSFP-4SFP-AOC-15M |
| Dimensions | 12x12x15 |
| Length Meters | 15m |
| Gauge | |
| Data Rate | 40GB |
| Type | Multimode |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Standards | Qualified to IEEE 802.3ba specifications |
| Form Factor | QSFP+ |
| Compatible Part | Palo Alto Networks |
| Jacketing | Riser Rated (OFNR) |
Reviews
No reviews yet
Be the first to review this product and help other customers make informed decisions.
$260.75
In Stock
