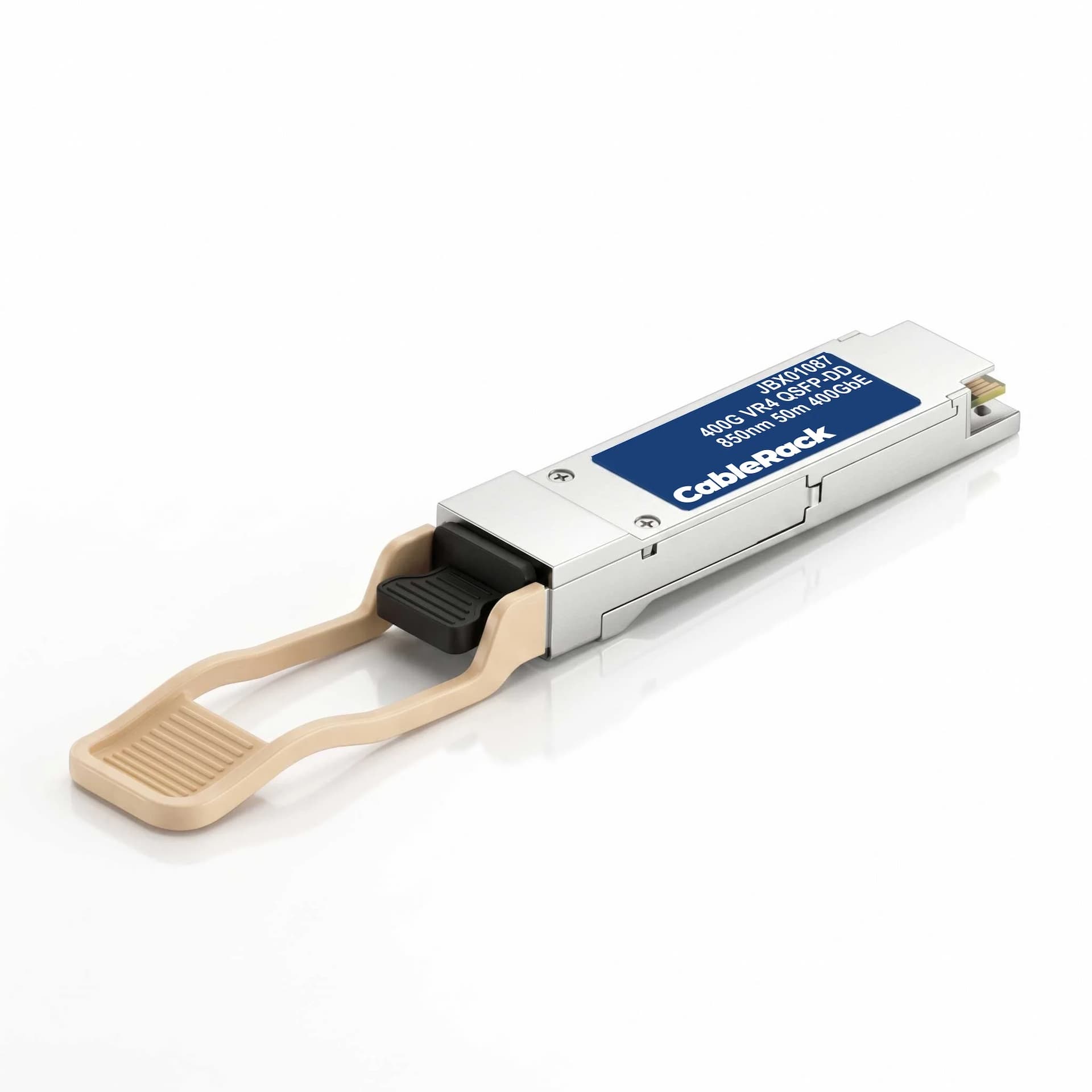

JBX01087 - primary

400GBASE-VR4 QSFP-DD Transceiver 850nm 50m over OM4 MMF MPO-12/APC Cisco QDD-400G-VR4-S Compatible

JBX01087

$1350.75
In Stock|0 Reviews|0 Questions|
New
Free Shipping: Free Standard Shipping on Orders Over $99
Ships From: Beaufort, SC 29902, Danville, CA 94526
Custom Avaliable: Custom Brand Programming Available
Warranty: 90 Day Limited Warranty

High-performance 400GBASE-VR4 QSFP-DD transceiver module offering 400GB data rates over 50m OM4 multimode fiber. Features 850nm wavelength, MTP/MPO connectors, and full Cisco compatibility. RoHS compliant with Class 1 laser safety certification.

Description

The JBX01087 400GBASE-VR4 QSFP-DD transceiver represents the cutting edge of optical networking technology, specifically engineered for organizations requiring ultra-high-speed data transmission. This module is a direct replacement for Cisco's QDD-400G-VR4-S, offering seamless integration into existing infrastructure without compatibility concerns. **Key Technical Specifications:** This transceiver operates at 400 gigabits per second over multimode fiber, utilizing an 850nm wavelength that maximizes transmission efficiency in short-reach applications. The 50-meter transmission distance over OM4 multimode fiber makes it ideal for intra-data center connectivity and high-density campus networks. The QSFP-DD form factor provides superior density compared to older transceiver types, allowing deployment of more connections in limited physical space. **Connector and Fiber Compatibility:** Equipped with MTP/MPO connectors, the JBX01087 facilitates rapid deployment and reconfiguration. OM4 multimode fiber support ensures compatibility with modern data center fiber infrastructure while maintaining cost-effectiveness compared to single-mode alternatives for short distances. **Standards Compliance and Safety:** Fully qualified to IEEE 802.3bs specifications and CMIS standards, this module guarantees interoperability with standards-compliant equipment. Comprehensive safety certifications including Class 1 Laser classification, TUV, UL, and FDA compliance (21CFR 1040.10) ensure workplace safety and regulatory adherence. **Build Quality and Reliability:** Constructed with premium metal casing and precision laser transmission technology, the transceiver delivers robust performance across a wide operating temperature range (0-70°C). RoHS and ELV compliance demonstrates environmental responsibility without compromising performance. **Support and Service:** Included 90-day limited warranty provides peace of mind. Custom brand programming is available for organizations requiring OEM specification compliance. Free standard shipping on orders exceeding $99 enhances value delivery.

Technical Specifications

SFP ConnectorsMTP/MPO
ComplianceRoHS / ELV
Country of ManufactureCN, VN
Safety CertificationsClass 1 Laser, LN #50 7/2001, TUV, UL / FDA, 21CFR 1040.10
DirectiveEU directive 2002/95/EC (RoHS)
Transceiver ModelVR4 50m MMF
Quick Descriptiom400GBASE-VR4 QSFP-DD Cisco QDD-400G-VR4-S Compatible
Hamonization Code8544.70.0000
IEEEIEEE 802.3bs, QSFP-DD MSA, CMIS
Replaces OEM P/NQDD-400G-VR4-S
Dimensions5x4x2
FeaturesMTP/MPO Fibre for QSFP-DD
Distance50m
Data Rate400GB
TypeMultimode
Operating Temperature0 to 70°C (32 to 158°F)
StandardsQualified to IEEE 802.3bs specifications
Form FactorQSFP-DD
Compatible PartCisco
